Worm Gear Operated Wafer Lug Type Butterfly Valve High Performence

Brand Name : ACKO

Model Number : D7A1X-10/16

Certification : CE ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100 sets per week

Delivery Time : 7-14 working days

Packaging Details : standard sea worthy packing

Body : Cast lron,Ductile lron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L

Disc : Ductile lron Coated by Nylon,Ductile lron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316l,Duplex Stainless Steel,Aluminum Bronze

Seat : EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon rubber

Stem : Carbon Steel 45#,Stainess Steel 416,Stainless Steel 304,Stainless Steel 316

Nominal Diameter : DN40-DN150

operate : Gear Operated

Applicable medium : Water、Sea water、Sewage、Oil、Air、Food、Weak acid and soda etc.

Contact Now

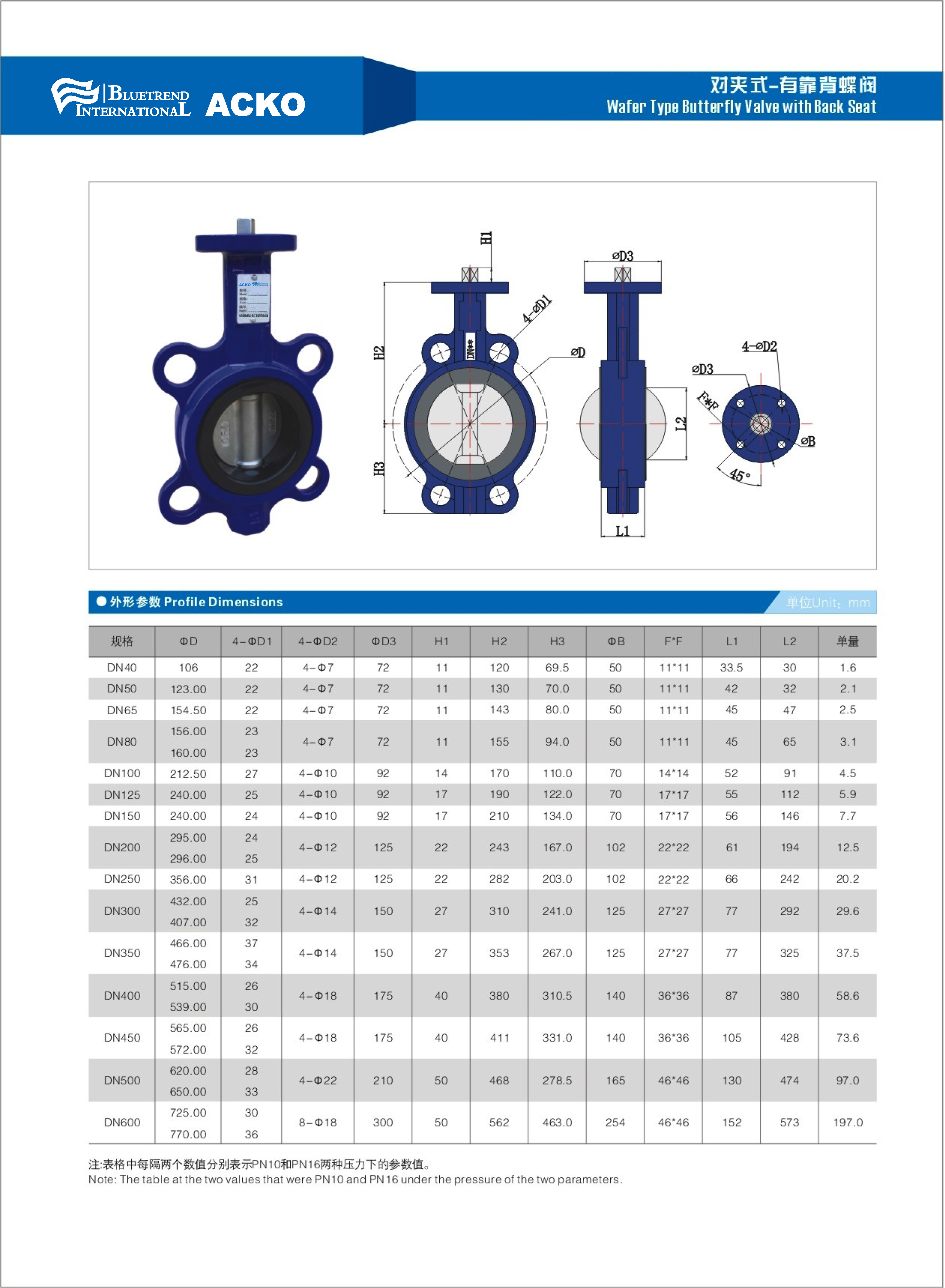

Wafer Type Worm Butterfly Valve With Back Seat

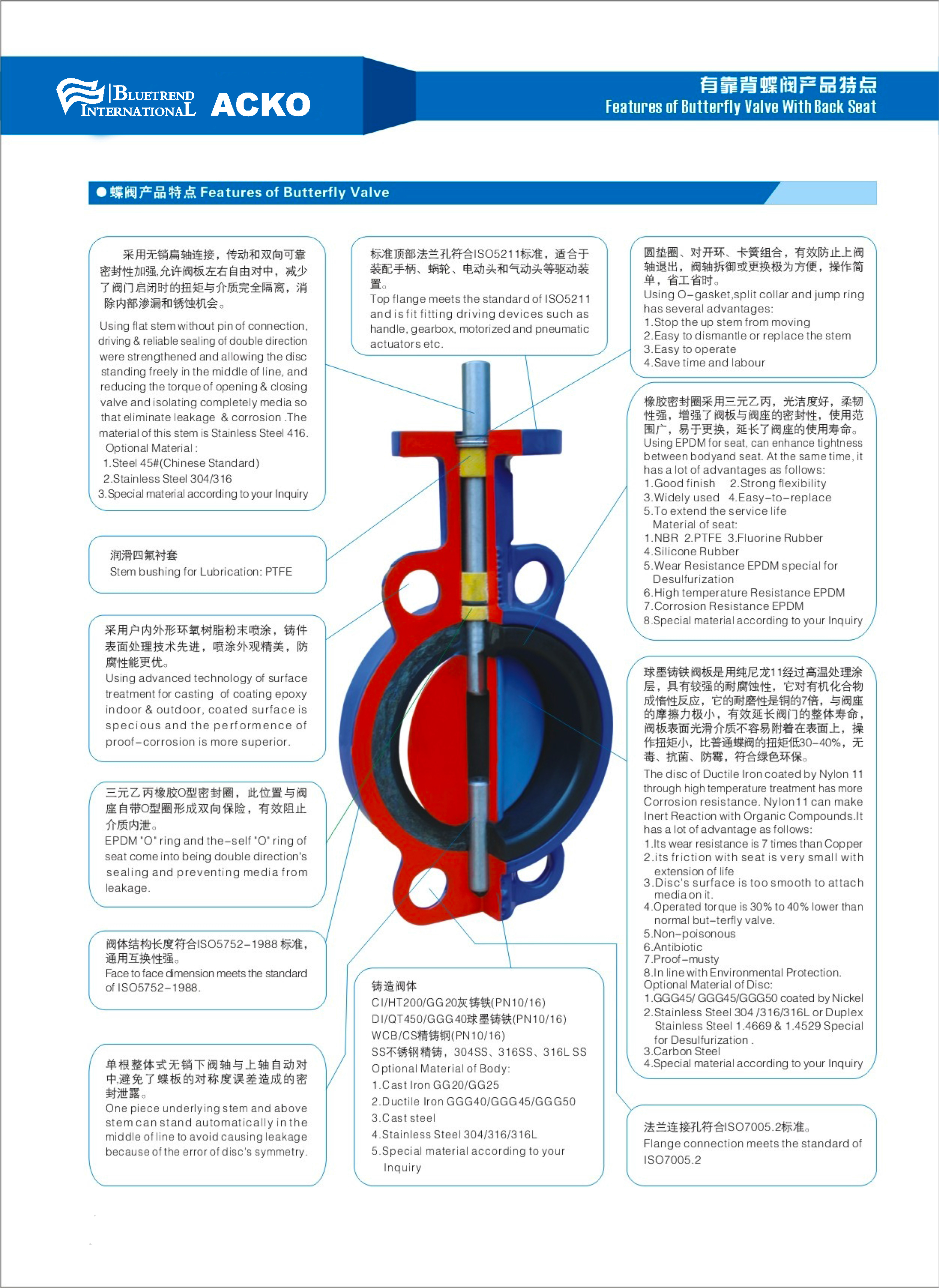

Worm Gear Operated Wafer Lug Type Butterfly Valve High Performence

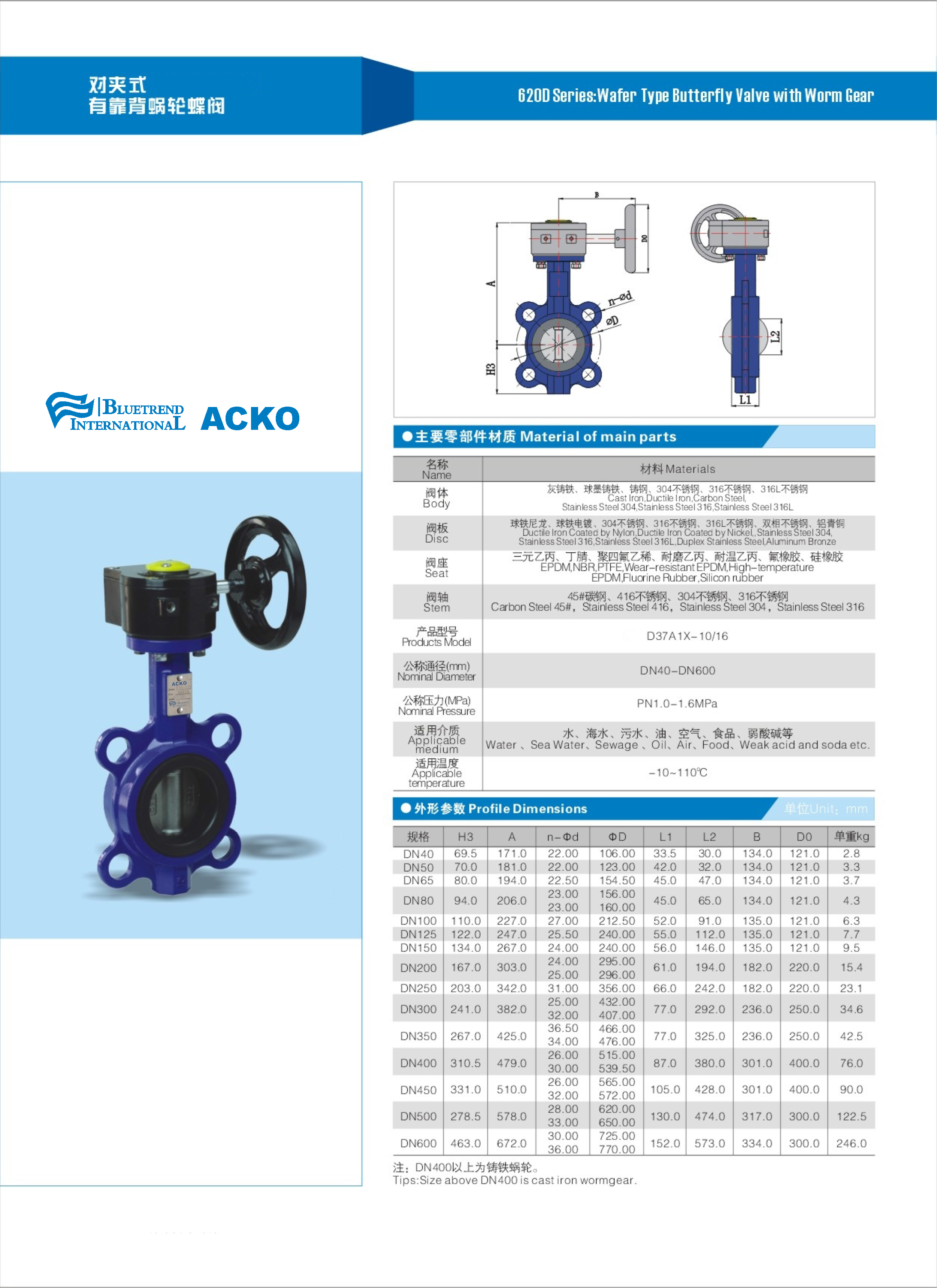

Material of main parts

Part name Materials
Body HT200,QT450,WCB,Stainless steel
Disc QT450 ,QT450 , ,304,316,316L,
QT450 Nickel Plating, QT450 Nylon Plating, Albronze,SS304,SS316,SS316L,Duplex Stainless Steel etc
Seat EPDM,NBR,PTFE, EPDM, EPDM,NBR,PTFE,Wear/heat-resistant EPDM,Silicon rubber,VITON
Stem 45# ,416 ,304 ,316 Carbon Steel 45#,SS416,SS304,SS316

Products Mcdel		 D7A1X-10/16
Nominal Diameter(mm) DN32-DN200
Nominal Pressure(MPa) PN1.0-16MPa
Applicable medium Fresh water,Sea water,Sewage,Air,Food,Weak acid alkali and Salt etc.
Applicable temperature -10～110℃

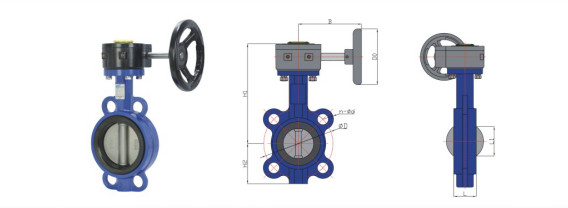

Main contour and connection size Unit:mm
Size ØD 4-ØD1 H1 H2 B D0 L L1 Kg
DN40 106 22 171 71 131 121 33.5 30 2.81
DN50 123 22 181 70 131 121 42 32 3.30
DN65 142 22 194 80 131 121 45 47 3.70
DN80 154.5 23 206 94 131 121 45 65.00 4.28
154.5 23
DN100 183 27 228.5 108 143.5 160 52.1 91 6.27
DN125 212.5 25 248.5 122 143.5 160 55 112 7.66
DN150 240 24 268.5 134 143.5 160 56 146 9.47
DN200 295 24 303 167 181 220 61 194.00 15.37
296 25
DN250 356 31 342 203 181 220 66 242 23.12
DN300 407 25 386.5 241 232.5 280 77 292.00 34.6
432 32
DN350 460 23 429.5 267 232.5 280 77 325.00 42.54
470 26
DN400 515 26 481 310 262 350 87 380.00 64.55
525 30
DN450 565 26 511 331 262 350 105 428.00 85
585 30
DN500 620 26 643 378.5 317 300 130 474.00 123.65
650 33
DN600 725 20-30 748 463 334 300 152 573.00 221.05
770 20-36
DN700 840 24-30 855 523 280 400 164 673.00 436
840 24-36
DN800 950 24-33 896 581 280 400 190 770.00 551
950 24-39
DN900 1050 28-33 978 639 330 400 204 838.00 707
1050 28-39
DN1000 1160 28-36 1065 705 330 400 215 940.00 866
1170 28-42
DN1200 1380 32-39 1262 846 440 430 350 1101.00 1417
1390 32-48

Remark:DN50-450 Aluminium worm gear,DN500-1200 lron worm gear,DN500(included)the above specification is second level speed reducer.
